1. Product Introduction

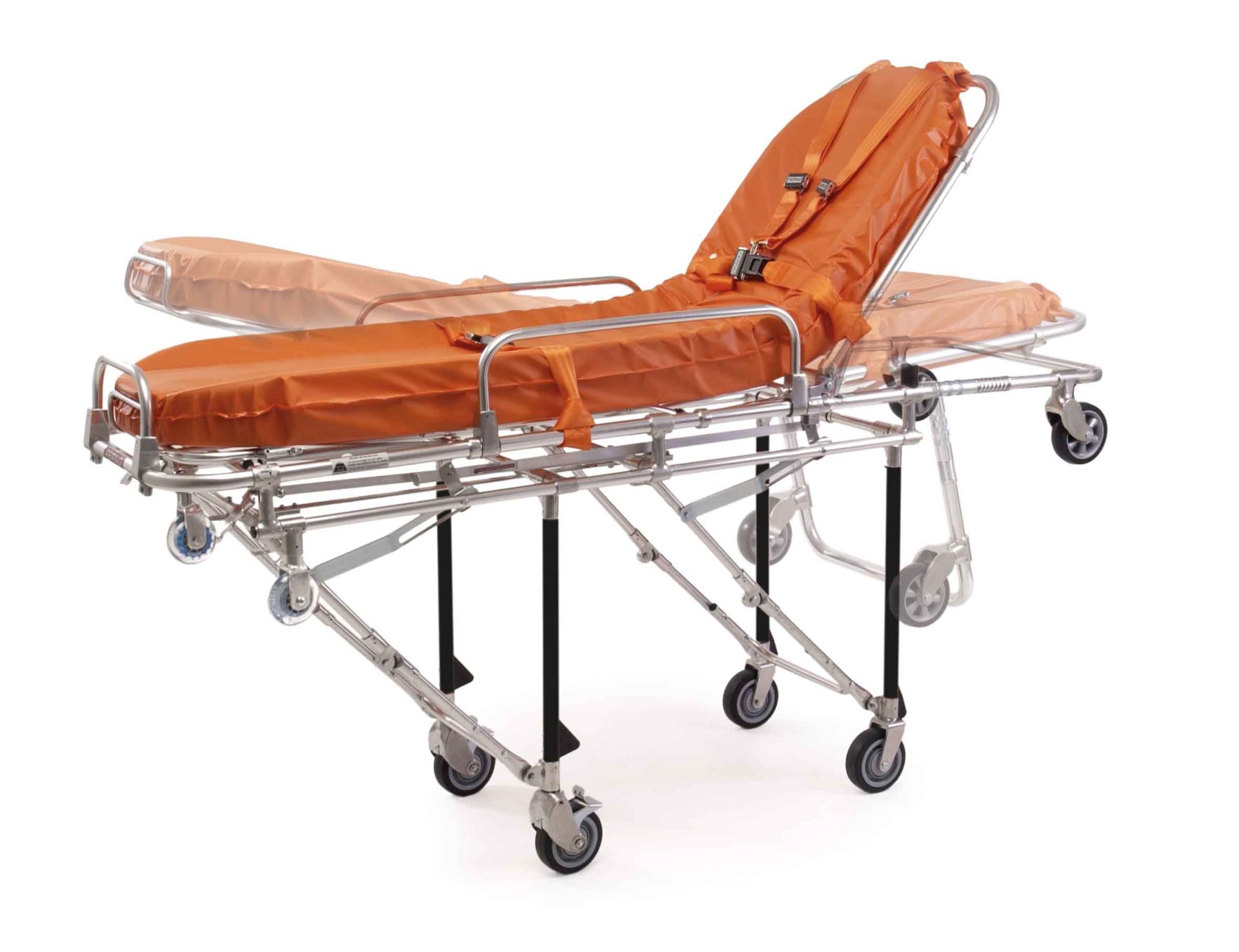

• The 26S/26AS Ambulance Cot features a transport mattress system that provides maximum comfort for the patient. It has two height adjustment levels: fully raised or lowered to the contact surface.

• In the raised position, the cot can be shortened by lifting the backrest and folding down the hinged head-end frame. The cot legs automatically fold when the cot is loaded into the ambulance and unfold when it is removed.

• An automatic locking system secures both the front and rear legs simultaneously when the legs are extended. The left and right control levers release the front and rear legs respectively when the cot is prepared for loading into the vehicle.

2. Key Features

• Simple operation with two cot frame height settings: fully raised or lowered to the contact surface.

• Aluminum frame construction.

• Main frame with shock-absorbing capability and fold-down design.

• Two fixed wheels and two swivel wheels (at the foot end of the cot) with up to 360° rotation, equipped with wheel locks.

• Legs that fold independently from the cot.

• Supplied with a mattress, safety belts, and shoulder straps to ensure patient comfort and safety.

• Adjustable backrest angle from 0° to 75°.

• Adjustable tilt angle at the foot end of the cot.

3. Technical Specifications

• Dimensions: 2032 × 610 × 305 mm (L × W × H)

• Weight: 25 kg

• Patient load capacity: 181 kg

• Accessory load capacity: 39 kg

• Maximum loading height: 600 mm

4. Additional Information & Contact

• Contact us today to receive detailed information about the 26S/26AS Ambulance Cot.
